LED Streetlamp Waterproof LED Connector 3 Pin IP68 Outdoor Connector
Outdoor underground IP68 waterproof LED connector
1. High protection level: IP68
2. Current/ voltage rating: 10A/300V
3. Any length of the cable is available.
4. dustproof cover design under off-working condition
5. connector was made by PVC/Nylon and cable was made by PVC/Rubber/PU/Silicone.
6. OEM/ODM are accepted .
7. gold-plated contact, high performance of corrosion resistance and electrical conductivity effectively deal with temperature rise.
The specifiction of Outdoor underground IP68 waterproof LED connector
| Place of Origin | Guangdong, China (Mainland) |
| Brand Name | Jnicon |
| Model Number | M15 series |
| Type | Screw circular waterproof connector |
| Application | Power, LED, Electrical equipment |
| Gender | Male to Female |
| Protection Level | IP68 |
| Assemble Style | Assembly /Panel mount/overmolded connector |
| Connector type | Screw locking |
| Number of contact | 2 pin/3 pin/4/pin/5 pin |
| Current rating | 10A |
| Voltage rating | 300V |
| Contact diameter*number | ∅1.5 |
| Withstanding voltage | 1500V |
| Cable gauge | 24-16AWG |
| Operating temperature | -40°C~+105°C |
| Material of shell, insulating parts | High performance engineering plastics |
| Material of copper needles | Copper alloy |
| Flame-resistance rating | UL94-V0 |
| Warranty | 12 months |
| Durability | 3000 times plug/unplug |
Application
M15 series connectors could be widely used in indoor & outdoor led lighting,electricl power connection,landscape lights,underwater lights,equipments etc.
Our waterproof circular connector are widely used in LED lighting,outdoor display,electrical equipment, automation machines,LED panel and etc.

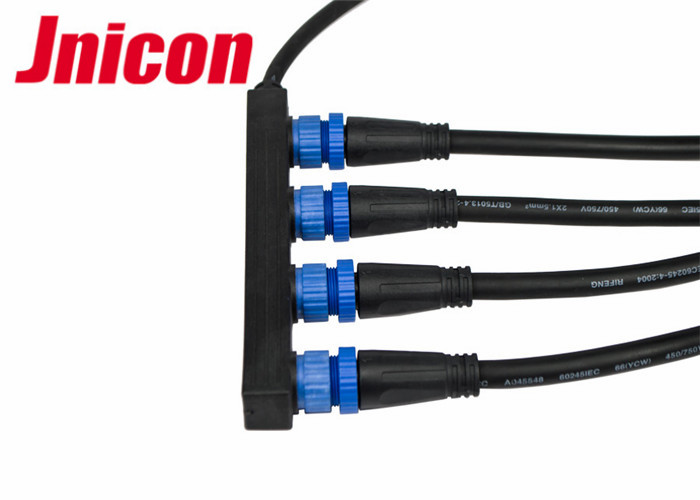

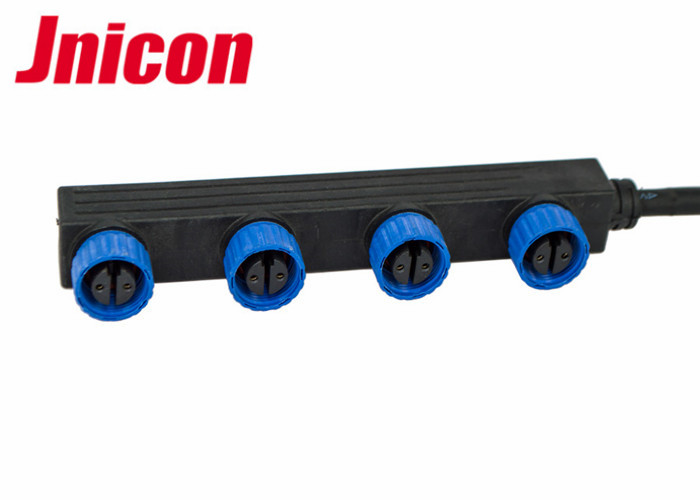

Product detail picture
