M19 3 Pole Waterproof Plug And Socket Cable Connector IP68 Wire To Board For Power LED

Name: M19 3 Pole Waterproof Plug And Socket Cable Connector IP68 Wire To Board For Power LED
Brand: Jnicon
Price: 1 USD

Brand Name : Jnicon

Model Number : Waterproof Plug Socket

Certification : UL/CE/TUV/CQC/RoHS

Place of Origin : China

MOQ : 100 (10 Pairs of samples)

Price : Negotiable

Payment Terms : L/C,T/T,Paypal,Western Union

Supply Ability : 10000pcs/day

Delivery Time : 3-5 working days

Packaging Details : 1.Plastic bag; 2.Carton; 3.As per customer's requirement

Product Name : Waterproof Plug Socket

Operating voltage : 500V

Rated Current : 20A

Application : Power,LED

Color : Blue

MOQ : 1 Pair

Contact Now

M19 3 Pole Wire To Board Waterproof Plug Socket Cable Connector For Power LED

Product Descriptions

3pin male female plug and socket

IP68 protection level

Push locking type

plug and socket

Apply for outdoor LED lighting

Protect Features

1. Waterproof plug socket

2. Connecting everything perfectly

3. 20A Max , IP67 protection level

4. Multi pin available

5. Approved by UL,CE,TUV and RoHS

6. Push locking structure

7. 3 years warranty

8. Long service life & easy to assemble

Product Parameter

Material	Connector Body	Nylon(PA66)+GF UL94V-0 1/16''
	Contact	Brass with Gold Plated
	Sealing	Silica Gel
Property	Current Rating	20A
	Voltage Rating	300V
	Temperature Rating	_40+105°C
	Durability(Plug/Unplug)	500 times
	Waterproof Rating	IP67
	Cable Max. Diameter	11 mm
Certificate	TUV; UL;CQC ; CE; ROSH

Widely used M19 lock type Connector:
Great suitable for Outdoor LED light, LED Display, LED Street Lamp lighting, Stage lighting, LED equipment, Communication Equipment, Power, Automotive, grating, external wiring, CCTV, factory automation control, wireless bridge and other places need waterproof joint use.

IP67 Waterproof connector plug:
Moisture-proof and Dust-proof, never leave your precious wires exposed and have good protection on them,this outdoor electrical box is safe for home, garden or outdoor lighting.

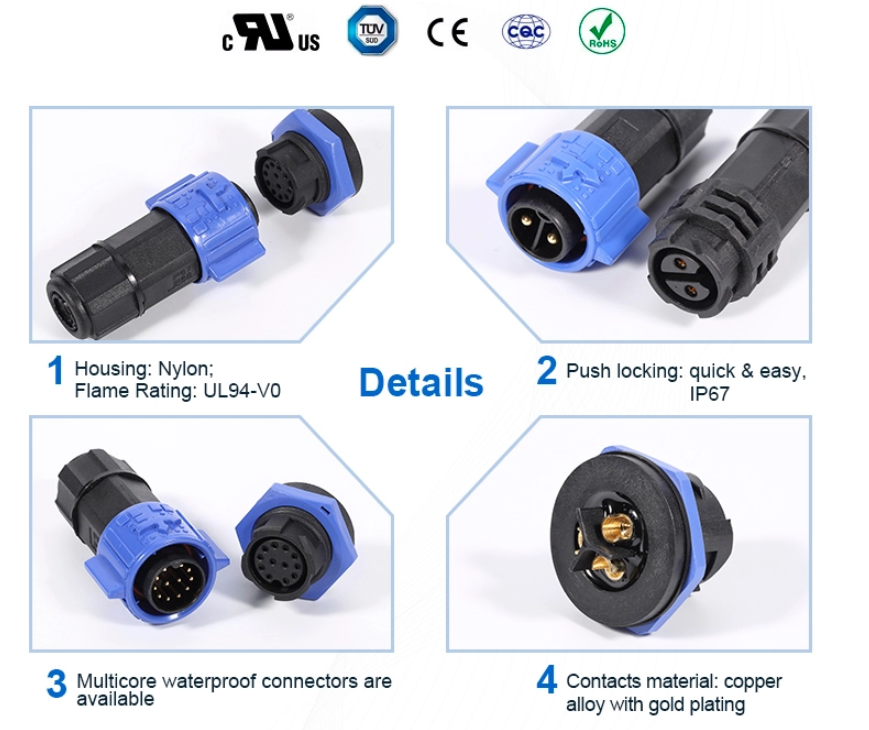

Product Details

M19 3 Pole Waterproof Plug And Socket Cable Connector IP68 Wire To Board For Power LED

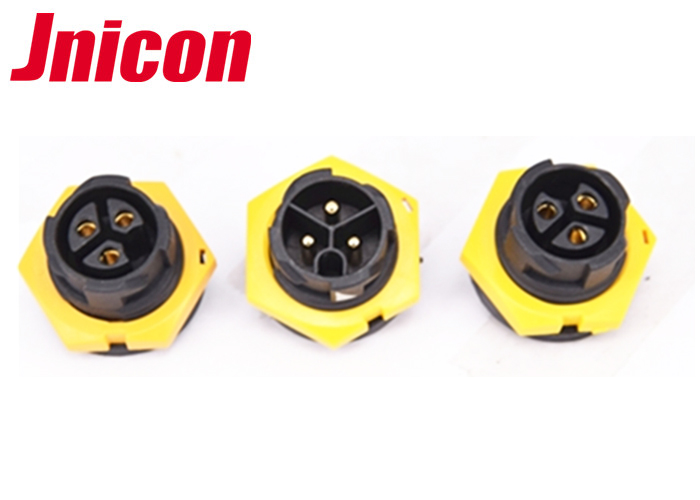

Waterproof Plug Socket Show

M19 3 Pole Waterproof Plug And Socket Cable Connector IP68 Wire To Board For Power LED
